Cloud based deployment pipeline

I often post about Cloud IDE and Java EE on Twitter. Follow me here

Cloud-based development tools are continuing to improve thanks to the power of new browser technologies and cloud services such as GitHub and Amazon Web Services. The full deployment lifecycle can now be based entirely in the cloud by using various SaaS and PaaS offerings. As each service offered is provided by a different entity the challenge is to integrated those services together to form a seamless continuous development process.

Start your free trial on and Learn Java EE with my new course.

By choosing carefully, it should be possible to create an effective and efficient combination of services that allows smooth movement from the codebase, through version control, testing and to deployment to production.

Following on from my previous article in which I reviewed seven cloud-based IDEs from the perspective of Java web application development, I now take one of these services through its paces. The IDE by promises a no-fuss set-up for a large range of technologies such as Java and Spring. It integrates with Git Hub code repository and a selection of PaaS including Amazon Web Services.

Development Environment

Setting up a development environment is a 1-2-3 step process. As can be seen from the screenshot below you can easily choose the technology or framework in which you wish to develop your application and the PaaS Service as its target deployment.

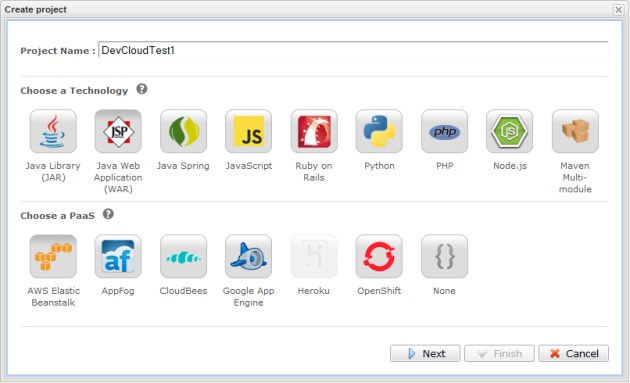

Setting up development environment

Choosing the Java Web Application technology option and the AWS Elastic Beanstalk PaaS deployment target a default workspace was created with Java source directories, a webapp directory and a web.xml file already created.

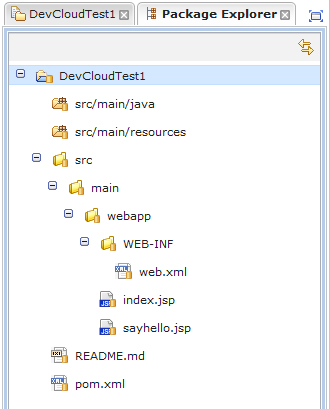

Default web application directories

A simple hello world type web application is automatically created. I decided to use this application to test run the development and deployment process before developing any code. The example web application created by default should be sufficient for such a test.  I started by connecting the source code in the newly created workspace to a newly created Github repository.

Source control

GitHub is well known as a reliable cloud-based source code control system. Choosing it as a source control was a no-brainer for Codenvy.

To connect Git Hub you must first create a new repository (if not using an existing one). It is necessary to generate SSH keys in Codenvy which you then configure in Git Hub.

Once this is done the workspace is ready to synchronize with the code repository at Git Hub. The repository must first be pulled from Git Hub before any changes are made to the source code. Then for each file or directory that you wish to add or update to the code repository, you firstly add it to the index and commit it, then to send it to Git Hub you must do a remote push.

It mimics the desktop process and smoothly fits in with the development cycle. Once you are happy that you code is nice and safely tucked away in the repository it can be deployed onto the web server.


I choose to use AWS Elastic Beanstalk solution for the deployment target.

Amazon offers a bewildering range of services (about 25) and understanding how they all fit together is no small task. Each service exposes an area of functionality. Elastic Beanstalk is a collection of six services that comprise of EC2 (an instance of Linux and Tomcat 7), S3 (Storage), SNS (Notifications), CloudWatch (Health monitoring), Load Balancing and Auto Scaling.

I have been using AWS for about a year and I run a t1.micro instance of Linux and Tomcat 7 on EC2 so I was familiar with these services.

Set up of a target environment can be done from within Codenvy but I preferred to set it up partially via the AWS console. I set up an S3 instance and generated some access keys. With these in hand, I went back to Codenvy and selected Create Application from the Elastic Beanstalk menu option and followed the instructions on their website. It took some time for the environment to be created (about 4 minutes), but once created I returned to the AWS console to check the instance that was created and the environment. All had been created and were running without problems.

With the environment setup, I was ready to deploy the application. Again it was a simple process, I created a new version and hit the deploy button.

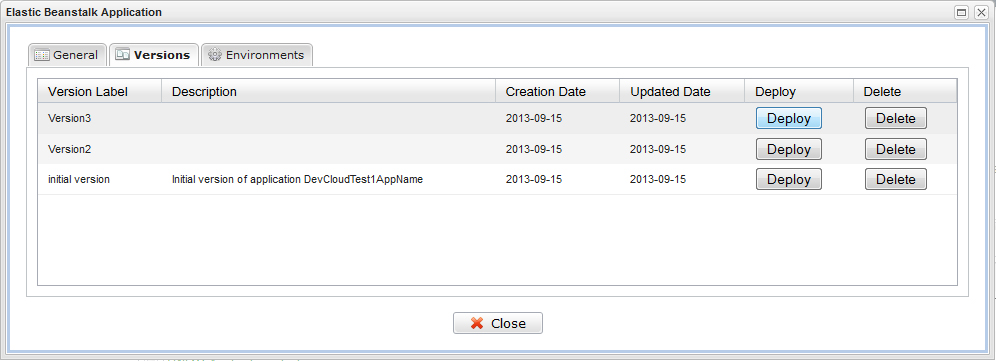

Deploy the application

The application was deployed and I could access it via the


Overall it was a simple enough process of setting up and testing each part of the deployment pipeline. The integration is smooth and the different providers are seamlessly made part of’s IDE. The combination of Git Hub, AWS and Codenvy makes it clear that a fairly sophisticated development process of coding, building, versioning and deploying can be achieved with Codenvy’s IDE and the integrated cloud services from Git Hub and Amazon.

You might be interested in these articles

Amazon Free Usage Tier: Installing Tomcat 7 on an EC2 Linux instance

Cloud IDE for Java EE development

Step by step guide to setting up a Java EE web application

Java EE project from remote Git repository

I often post about Cloud IDE and Java EE on Twitter. Follow me here

3 Comments on Cloud based deployment pipeline

  1. A nice article, thanks! How about thinks like a testing environment, continuous integration, etc. Would you mind writing an article about how to extend your setup to support these as well?

  2. Thank you for your comment Dušan. I am not aware of any cloud based testing suits or continuous integration that can be integrated into the codenvy service. I certainly think that it would be very interesting to that happen.

  3. Great article about cloud development for Java. I was timing the same as Dušan. I’ve used cloud 9 and — even though it did what I needed it to do (manage, compile, and deploy a node.js project) — I still had to go elsewhere for CI. But you know what, that’s fine. In a desktop environment, my CI is handled elsewhere as well.

    Not that it has to be via OpenShift, but I do like their Jenkins cartridge. If not that, then maybe a spot instance with Jenkins on it. Or perhaps using docker, create a dockerfile in your git that can build a CI container — my favorite option lately.


    Haven’t read passed this post. Perhaps you’ve already touched on these.
